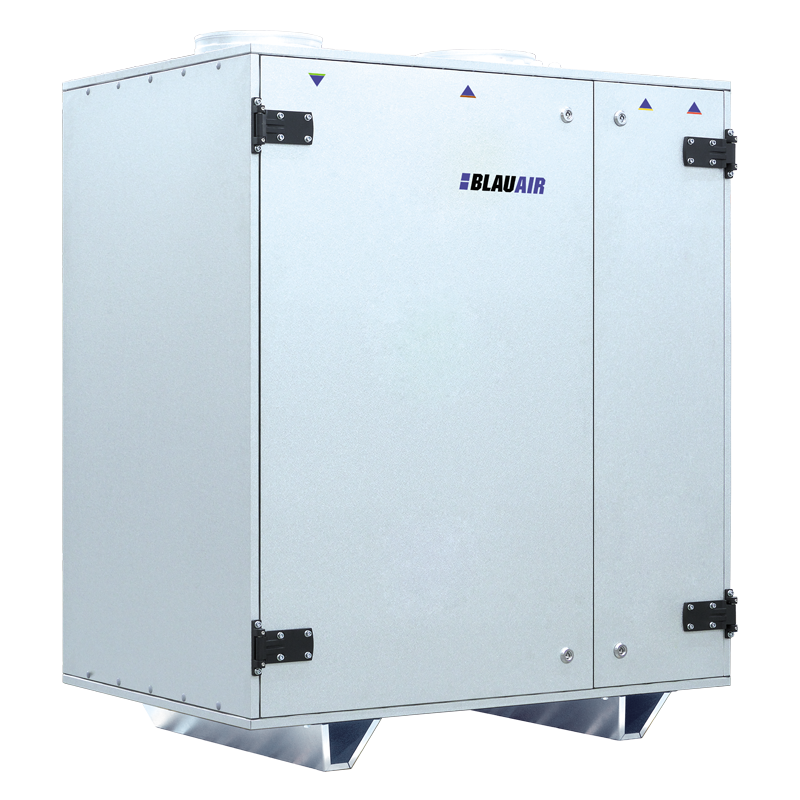

/ Product catalogue / Air handling units / Rotary commercial AHU / Vertical Units / BlauAIR RV / BlauAIR RV 1200
| Unit of measurement | BlauAIR RV 1200 | |
| Casing performance | - | 50 mm, T2/TB2 |
| Phases | - | 1 |
| Minimum supply voltage | V | 200 |
| Maximum supply voltage | V | 240 |
| Power supply frequency | Hz | 50/60 |
| Rated power supply fan | W | 532 |
| Rated power extract fan | W | 532 |
| Maximum airflow | m³/h | 1450 |
| Heat exchanger type | - | Rotary, condensation or enthalpy |
| Heat exchanger material | - | Aluminium/aluminium with hygroscopic coating |
| Weight | kg | 250 |
| Transported air temperature (max) | °С | 40 |
| Transported air temperature (min) | °С | -25 |
| Ambient air temperature max | °С | 60 |
| Ambient air temperature min | °С | -40 |
| Ingress protection rating | - | IP22 |
| Ingress protection rating of the drive | - | IP54 |

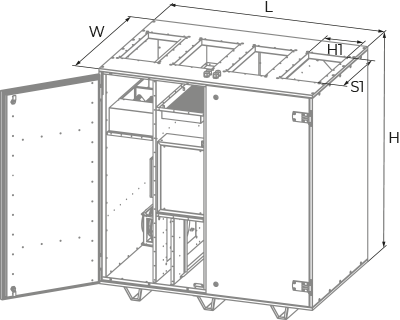

| L | W | H | H1 | S1 |
|---|---|---|---|---|
| 1140 | 785 | 1250 | Ø 250 | – |
