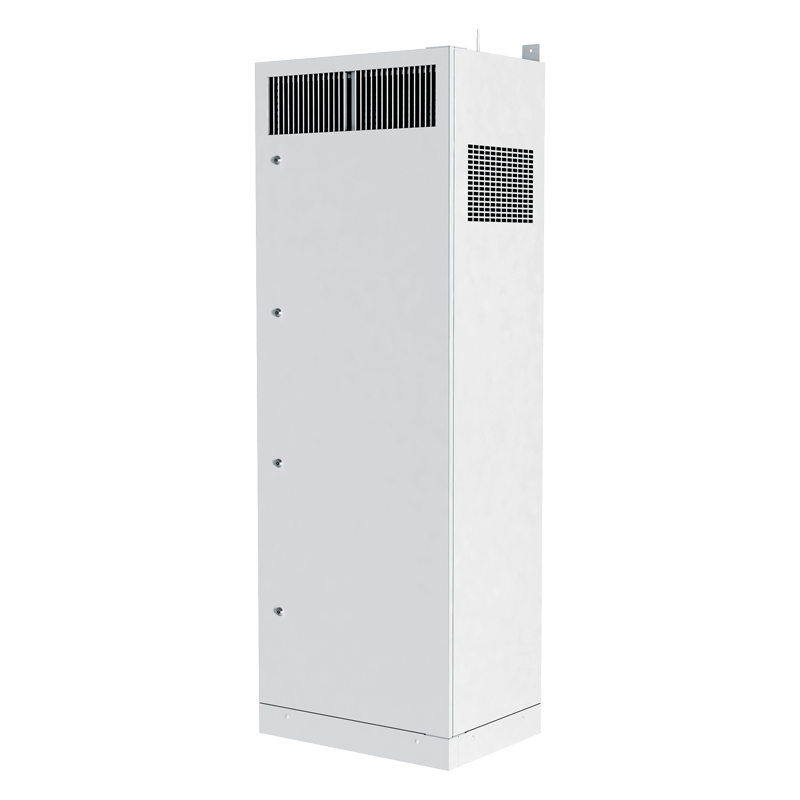

Blauberg CIVIC EC LB 500 S21 V.2

Blauberg CIVIC EC LB 500 S21 V.2 - The CIVIC EC LB V.2 units are designed for singleroom ventilation of schools, offices and other public and commercial premises
Series: CIVIC EC LB V.2
The CIVIC EC LB V.2 units are designed for singleroom ventilation of schools, offices and other public and commercial premises
  • Sound pressure level LpA at 1 m: 47 dB(A)
  • Heat exchanger type: Counter flow
  • Heat exchanger material: Polystyrene
  • Sound-insulated casing
  • Bypass: Auto
  • BMS protocol: ModBus
  • Control: Smartphone
  • Casing material: Coated steel
  • CO2 sensor: Optional
  • PM2.5 sensor: Optional
  • Temperature sensor
Unit of measurement CIVIC EC LB 500 S21 V.2
Phases - 1
Minimum supply voltage V 230
Maximum supply voltage V 230
Power supply frequency Hz 50/60
Maximum airflow m³/h 580
Sound pressure level LpA at 1 m dB(A) 47
Heat recovery efficiency, max % 94
Heat exchanger type - Counter flow
Heat exchanger material - Polystyrene
Weight kg 139
Transported air temperature (max) °С 40
Transported air temperature (min) °С -25
Ambient air temperature min °С 1
Ambient air temperature max °С 40
Ingress protection rating - IP20
Ingress protection rating of the drive - IP44
Ambient air humidity max % 60
Datasheet
CIVIC EC LB V.2 - data sheet
1.48 Mb
Manual
S21 - user's manual
626 Kb
Manual
Modbus table for connecting S21 automation to BMS - user's manual
141 Kb
Manual
AH CIVIC EC LB - installation instruction (B113-14EN-01)
1.46 Mb
Manual
CIVIC EC LB V.2 - user's manual (B142EN-08)
3.6 Mb
Manual
CIVIC EC LB 1200 V.2 - user's manual (B142-1EN-03)
3.46 Mb
CIVIC EC LB 500 S21 V.2 - image 1
322 Kb

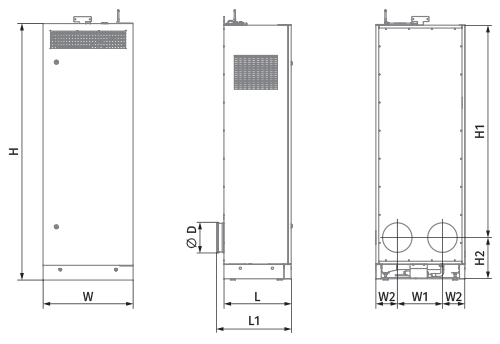

Ø D H H1 H2 L L1 W / B W1 / B1 W2 / B2
250 2170 1865 305 535 585 750 350 200
Condensation drainage
Name Photo Description
Blauberg SFK 20x32 SFK 20x32 Hydraulic syphon for condensate drainage
Blauberg CP-2 CP-2 Drain pump
Control Panels
Name Photo Description
Blauberg S25 S25 LCD control panel
Blauberg S22 S22 Control panels
CO2 sensors
Name Photo Description
Blauberg CD-1 CD-1 CO2 sensors
Blauberg CD-2 CD-2 CO2 sensors
Humidity sensors
Name Photo Description
Blauberg FS2 FS2 Humidity sensor
Hoods
Name Photo Description
Blauberg AH Civic 500 LB chrome AH Civic 500 LB chrome
Blauberg AH Civic 500 LB white AH Civic 500 LB white
Other accessories
Name Photo Description
Blauberg FP 449x318x60 F7 FP 449x318x60 F7 F7 panel filter
Blauberg FP 255x448x25 G4 (2 pcs.) FP 255x448x25 G4 (2 pcs.) G4 panel filter
