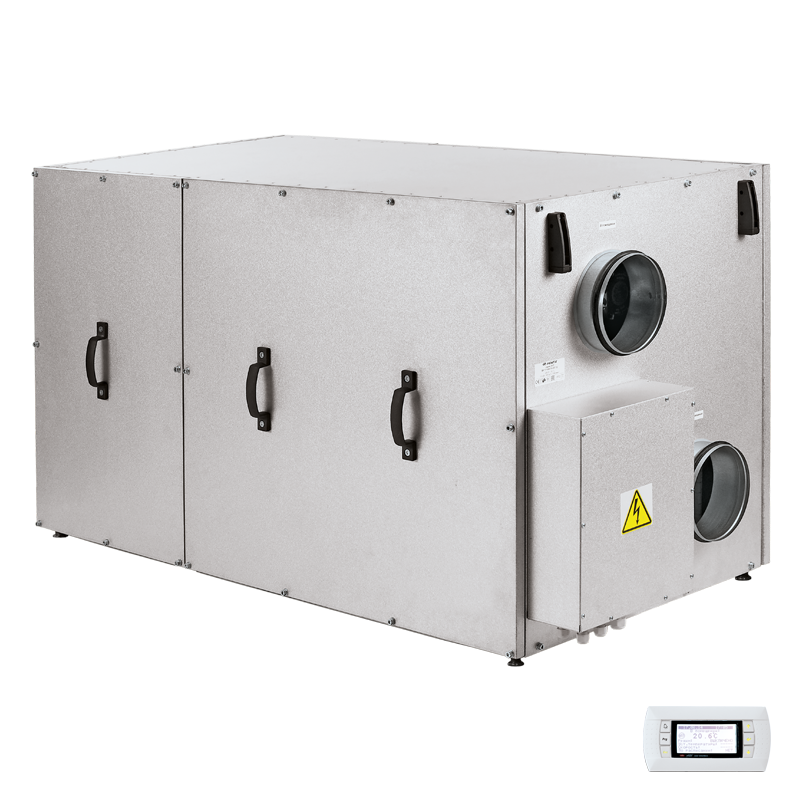

/ Product catalogue / Air handling units / Rotary commercial AHU / Horizontal Units / KOMFORT Roto EC L(E)HP / KOMFORT Roto EC LEHP 900 S18
| Unit of measurement | KOMFORT Roto EC LEHP 900 S18 | |
| Phases | - | 1 |
| Minimum supply voltage | V | 230 |
| Maximum supply voltage | V | 230 |
| Power supply frequency | Hz | 50 |
| Power of electrical preheater | W | 2800 |
| Maximum airflow | m³/h | 955 |
| Heat recovery efficiency, max | % | 85 |
| Heat exchanger type | - | Rotary |
| Heat exchanger material | - | Aluminum |
| Weight | kg | 165 |
| Transported air temperature (max) | °С | 40 |
| Transported air temperature (min) | °С | -25 |
| Ambient air temperature min | °С | 1 |
| Ambient air temperature max | °С | 40 |
| Ingress protection rating | - | IP22 |
| Ingress protection rating of the drive | - | IP44 |
| Ambient air humidity max | % | 80 |

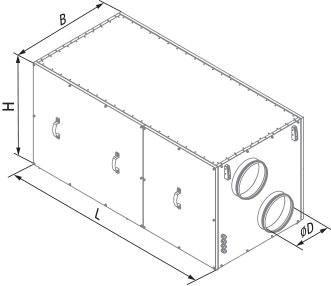

| ØD | B | H | L |
|---|---|---|---|
| 249 | 748 | 750 | 1667 |
| Name | Photo | Description |
|---|---|---|
| Blauberg FS2 |
|
Humidity sensor |
| Name | Photo | Description |
|---|---|---|
| Blauberg FP 700x352x48 G4 |
|
G4 panel filter |
| Blauberg FPT 700x351x27 F7 | ||
| Blauberg FPT 700x351x27 G4 |
