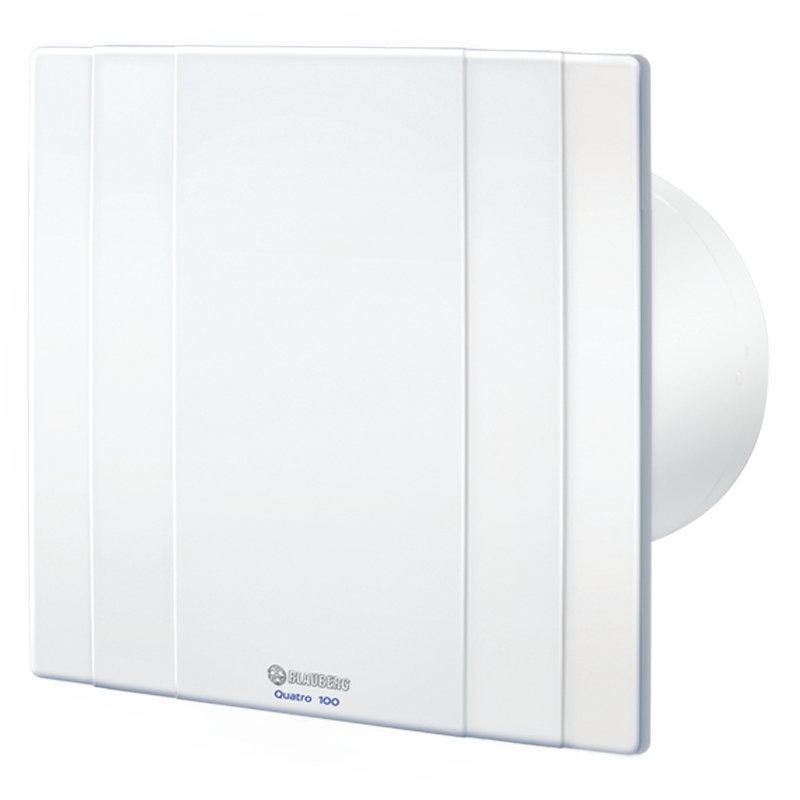

/ Product catalogue / Domestic ventilation / Residential wall fans / Classic axial fans / Quatro / Quatro 100 S| Unit of measurement | Quatro 100 S | |
| Minimum supply voltage | V | 220 |
| Maximum supply voltage | V | 240 |
| Power supply frequency | Hz | 50 |
| Maximum airflow | m³/h | 88 |
| Ingress protection rating | - | IP34 |
| Impeller material | - | Plastic |
| Trademark | Blauberg | |||||
| Model | Quatro 100 S | |||||
| Specific energy consumption (SEC) (kWh/(m²/a)) | Cold | Average | Warm | |||
| 0 | B | 0 | E | 0 | F | |
| Type of ventilation unit | Unidirectional | |||||
| Type of drive installed | Multi-speed | |||||
| Type of heat recovery system | None | |||||
| Maximum flow rate (m³/h) | 0 | |||||
| Electric power input (W) | 0 | |||||
| Reference flow rate (m³/s) | 0 | |||||
| Specific power input (SPI) (W/(m³/h)) | 0 | |||||
| Control typology | Manual control | |||||
| Maximum external leakage rates (%) | 0 | |||||
| Declared typology | RVU UVU | |||||
| Sound power level (dB(A)) | 0 | |||||
| The annual electricity consumption (AEC) (kWh/a) | Cold | Average | Warm | |||
| 0 | 0 | 0 | ||||
| The annual heating saved (AHS) (kWh/a) | Cold | Average | Warm | |||
| 0 | 0 | 0 | ||||
| a | a1 | b | c | ∅ d | e |
|---|---|---|---|---|---|
| 171 | 151 | 108 | 128 | 100 | 32 |
